Configuration of data transmission from EyeSuite (Octopus 600/900) to PeriData

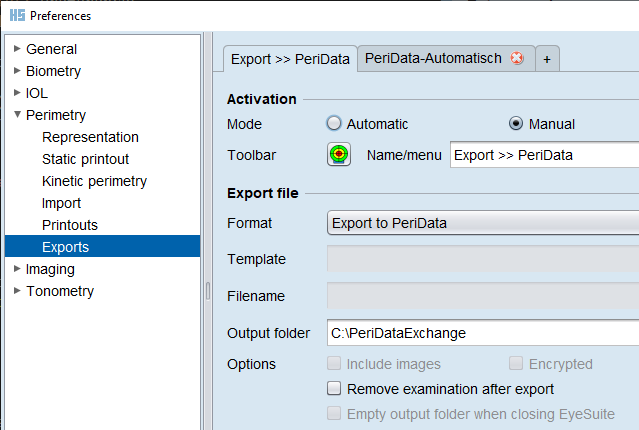

1. Manual transmission (with a button)
menu "Tools" >> Preferences
"Perimetry" (double click)
"Exports"
Click on "+" ("Export job" appears)
Mode = Manual
Toolbar - Button (doubleclick) >> select image file (directory "C:\PeriDataExchange", file "Peridata128.png")
Toolbar - Name/menu = "Export >> PeriData"
Format =
Export to PeriData
- ATTENTION: NOT ..to standard directory
Output folder =
C:\PeriDataExchange
(Octopus 900)
or
Output folder = <UNC-Path to Exchange-Folder on the PC with PeriData> (Octopus 600)
Remove exam after export =
NO ! NEVER
button OK
2. Automatic transmission (at the end of an examination)
The automatic transmission requires the definition of a SECOND EXPORT JOB !
menu "Tools" >> Preferences
"Perimetry" (double click)
"Exports"
Click on "+" ("Export job" appears)
Mode = Manual (allows to input a name)
Toolbar - Name/menu = "PeriData-Automatic" (gives a name to the export job )
now change: Mode = Automatic
Format =
Export to PeriData
- ATTENTION: NOT ..to standard directory
Output folder =
C:\PeriDataExchange
(Octopus 900)
or
Output folder = <UNC-Path to Exchange-Folder on the PC with PeriData> (Octopus 600)
Remove exam after export =
NO ! NEVER
button OK
Make the connection:
all steps
