Configuration of EXPORT Interface of the OCULUS perimeter (Twinfield / Centerfield / Easyfield / Smartfield)

The export of stored data needs no configuration. The automatic export at the end of an examination has to be configurated in the Oculus program.

Steps

• In the window 'OCULUS - Patient Data Management' you open the instrument's program (button 'Twinfield', 'Centerfield', 'Easyfield' or 'Smartfield') Note: A patient has to be selected, otherwise the button is inactive
• The program window OCULUS - Twinfield (bzw anderer Perimetertyp) appears. Click on the menu item Settings at the top of the window
• The dialog window Settings appears. Click on the button System->
• Accept the safety warning.
• The dialog Change System Settings appears. Click on the button Data Output->

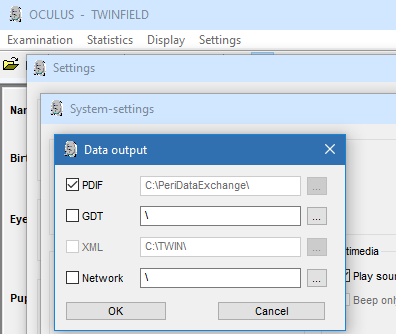

• The dialog Data Output appears. Mark the check box PDIF
  Note: the target directory (C:\PeriDataExchange) is automatically set and cannot be changed.
• IMPORTANT: Confirm with OK
• Close the window 'Change System Settings' (Button Back)
• IMPORTANT: In the dialog Settings press the button Save to save the settings
